Service Details

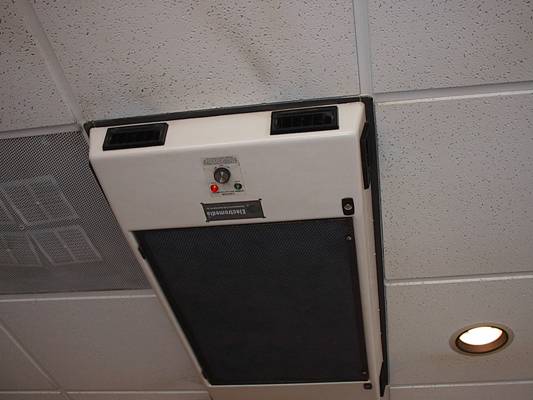

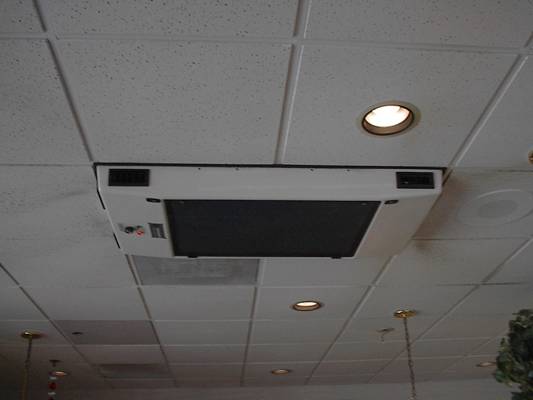

To ensure that your Electromedia 100C is operating at peak efficiency, be sure to keep up with the unit’s maintenance needs. Contact an Atmospure representative in order to find a suitable maintenance schedule that is practical for your establishment.

Typically, pre-filter maintenance occurs monthly with exceptionally smoky or dusty environments needing a pre-filter change every two weeks. Generally customers can complete the monthly pre-filter service themselves, with Atmospure, Inc. supplying the necessary pre-filters.

Full service is provided by Atmospure, Inc. and is needed on average every six months. It is a more detailed process which involves changing of all the filters and cleaning the unit inside and out. Upon completion of full service, the Atmospure representative will leave the customer an ample supply of precut pre-filters to last them until their next full service. Some customers who have the maintenance personnel available to do a dedicated job on the air cleaner can purchase the required full service parts at a slightly discounted rate from Atmospure, Inc.

Pre-Filter Service

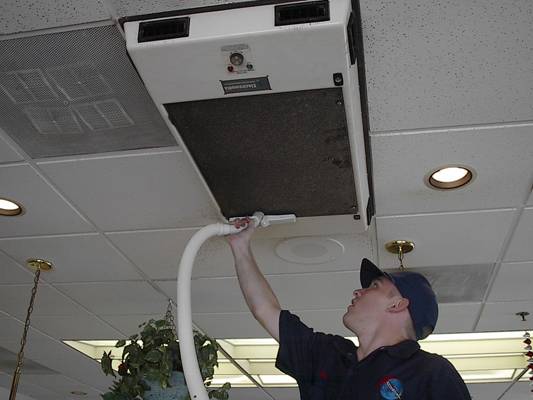

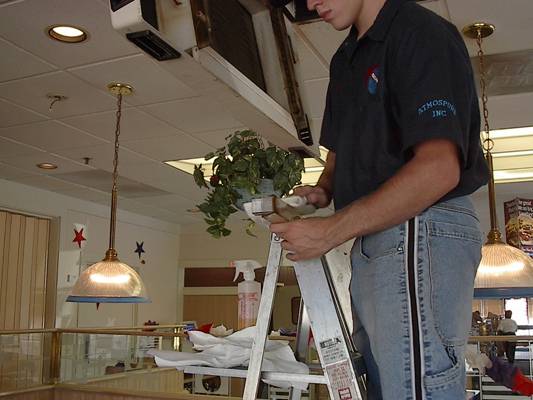

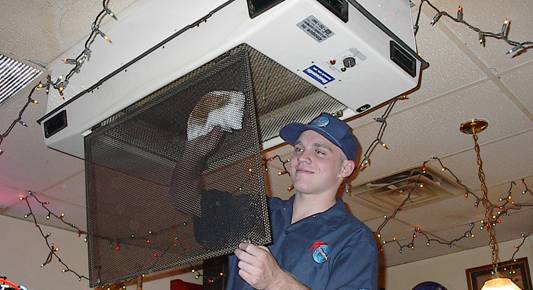

A. Begin by vacuuming the outside of the pre-filter retainer.

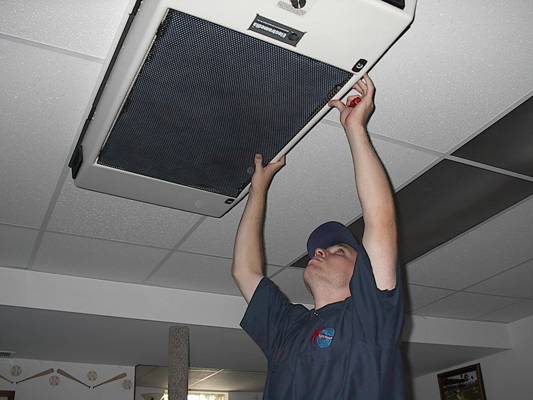

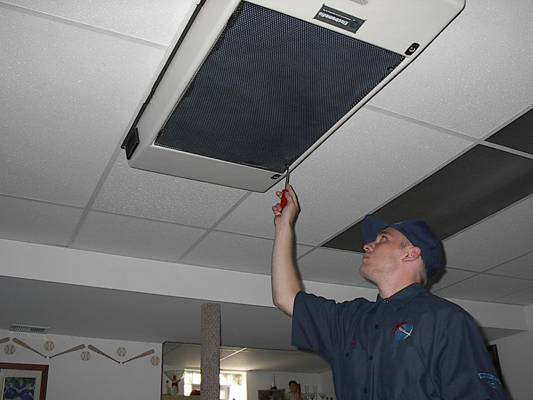

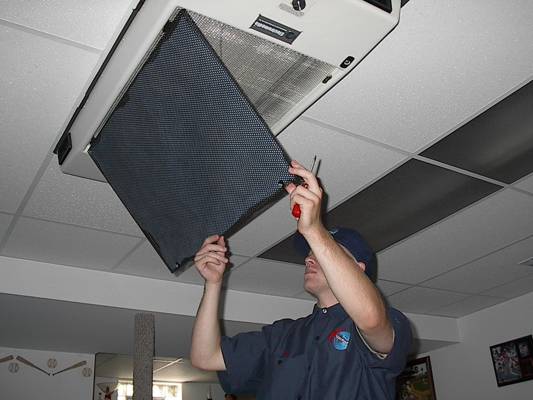

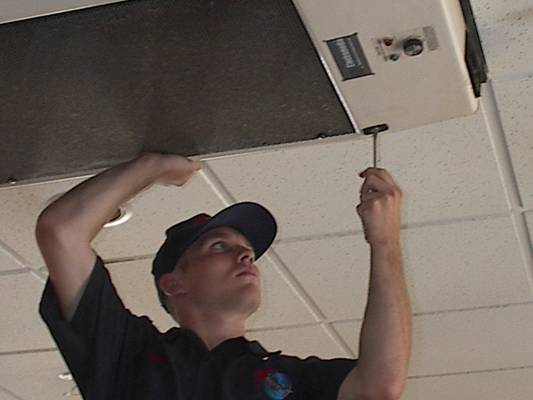

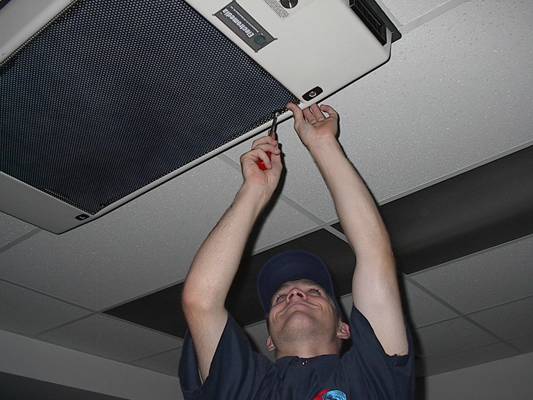

B. Open the pre-filter retainer by loosening the two screws located on the retainer.

C. Remove and dispose of the dirty mesh pre-filter.

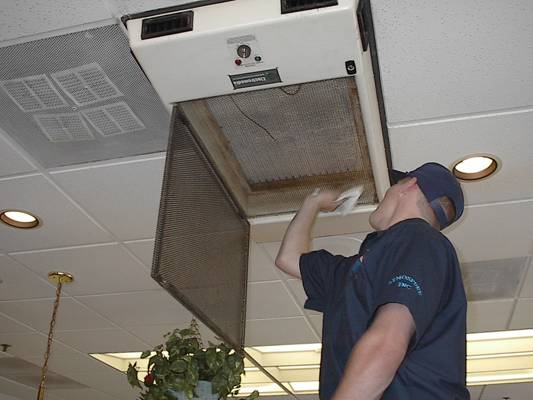

D. Clean inside of the pre-filter retainer.

E. Clean metal inside grill cover.

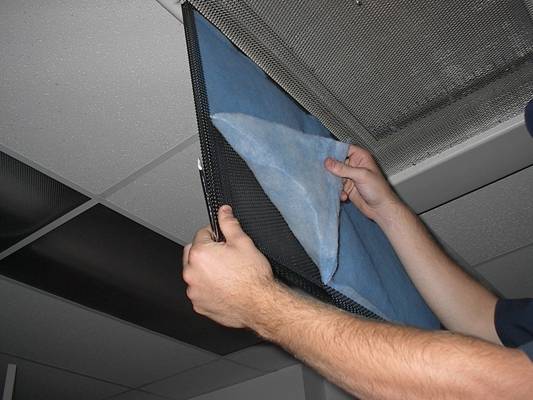

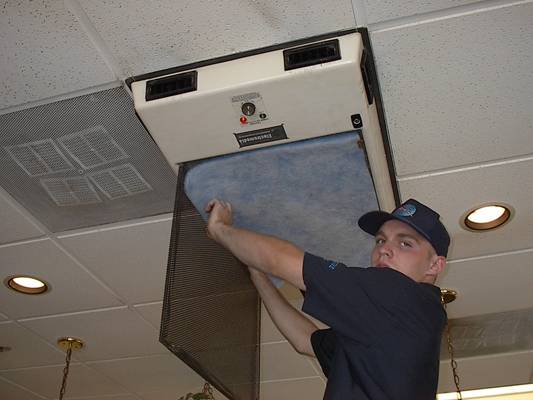

F. Put in a new mesh pre-filter, white side facing the ground.

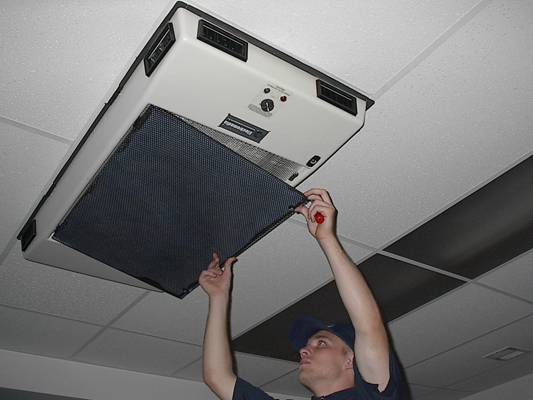

G. Close the pre-filter retainer and refasten the retainer screws.

Full Service Details

Complete steps A-G above, replace pre-filter at the same time a full service is to be completed.

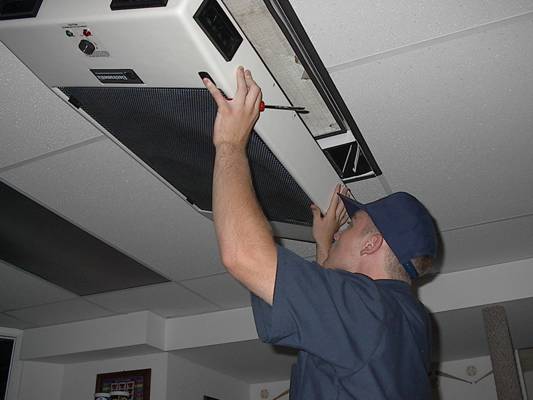

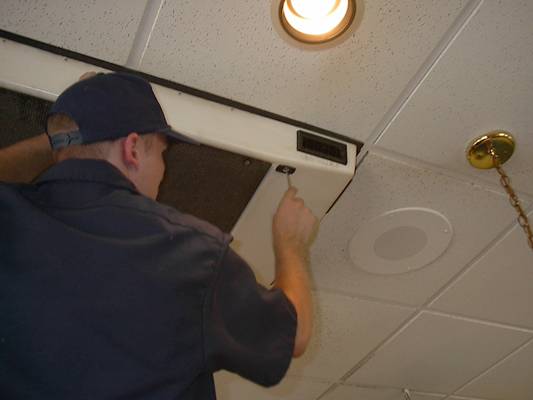

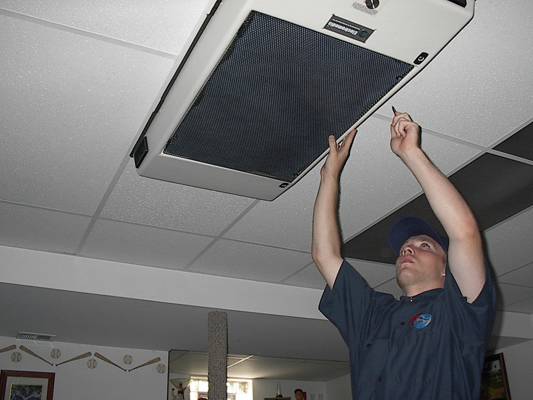

H. Open the main door one side at a time keeping your hand with pressure on the unit in the middle. Turn screw counterclockwise until it tightens, repeat for the other side.

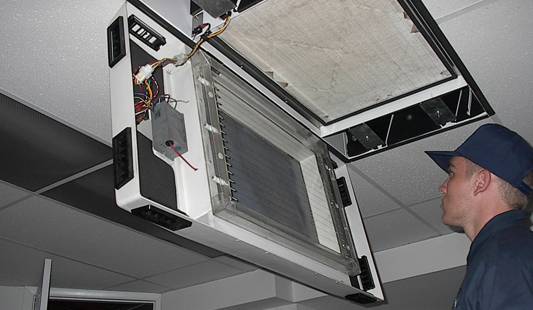

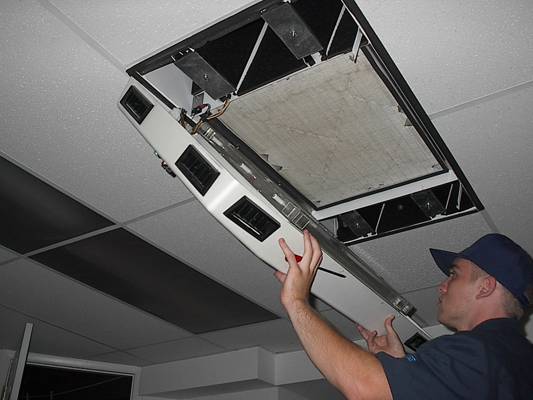

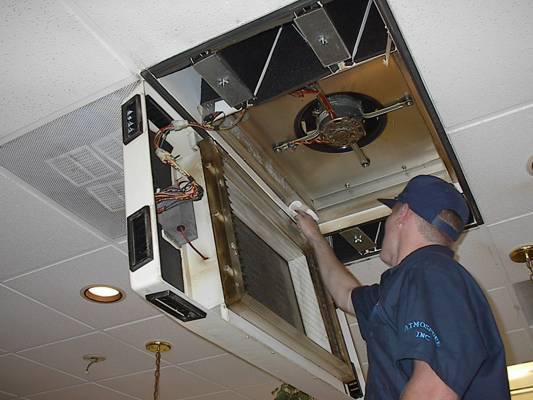

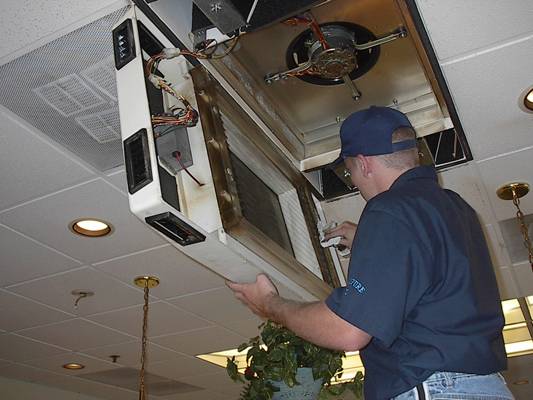

I. Pull air cleaner door downward and let hang freely.

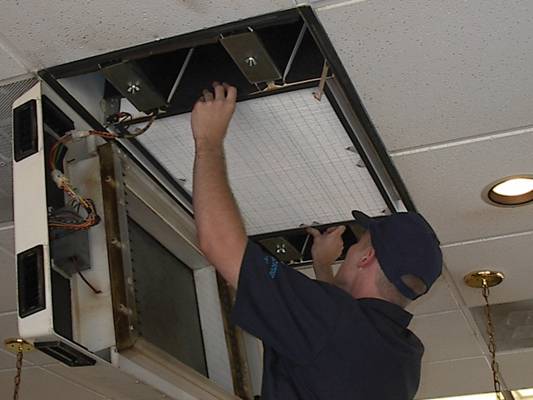

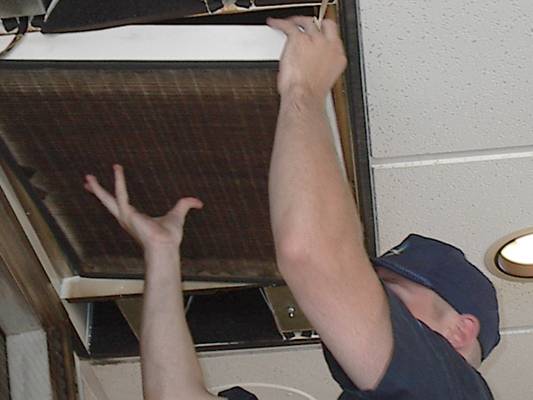

J. Remove dirty main filter.

K. Replace with a clean main filter.

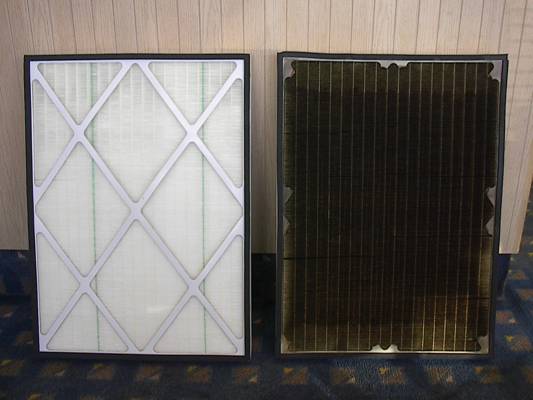

L. Note the difference between the clean main filter and the dirty one.

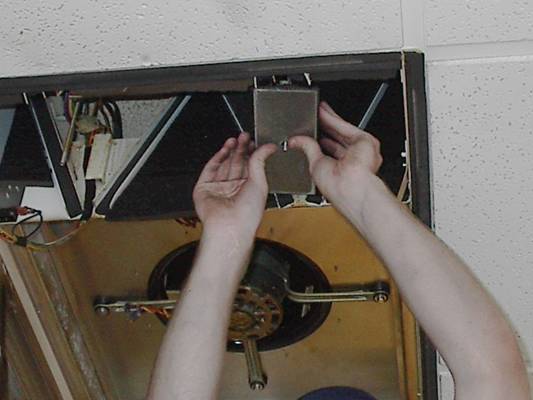

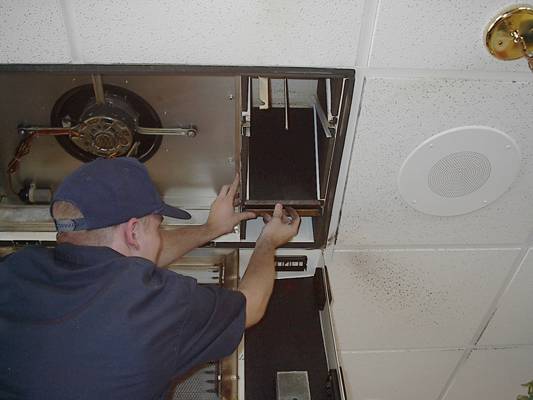

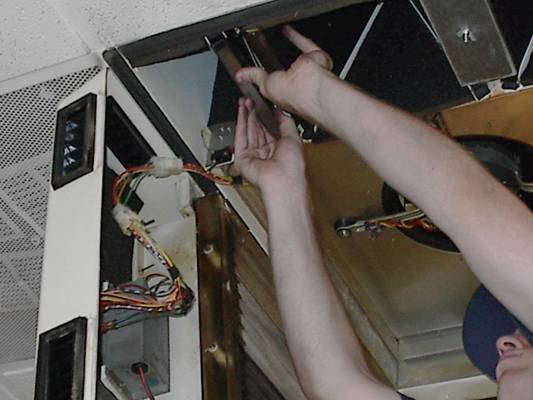

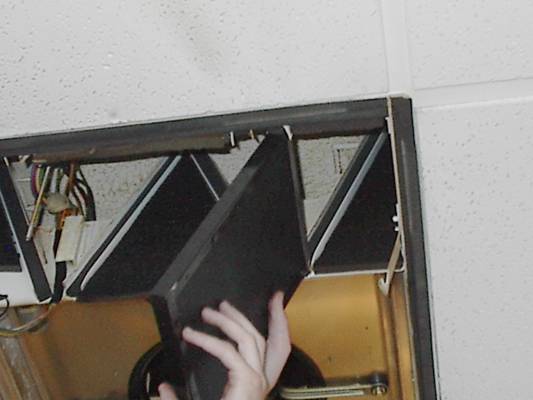

M. Remove dirty charcoal filters.

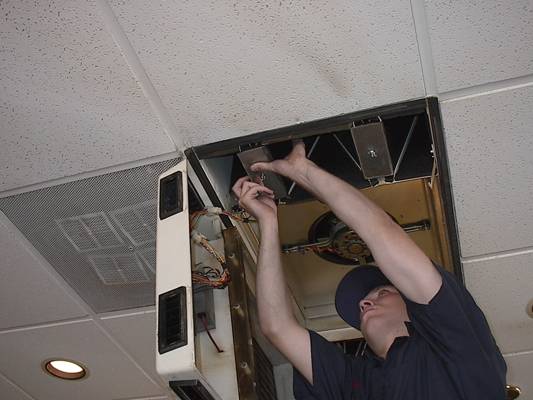

N. Install fresh activated charcoal filters.

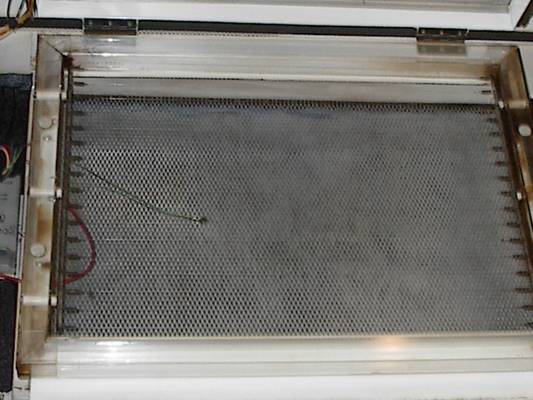

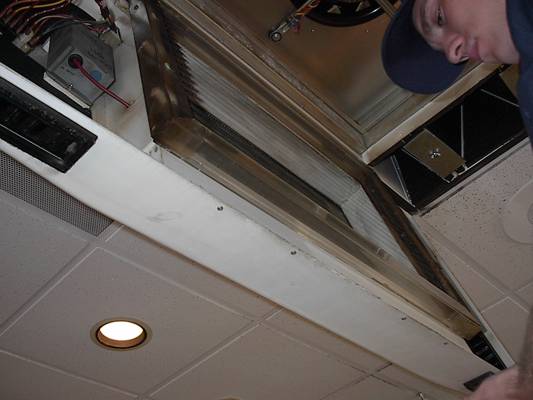

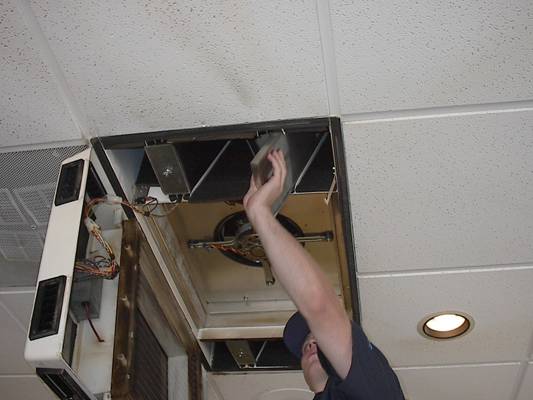

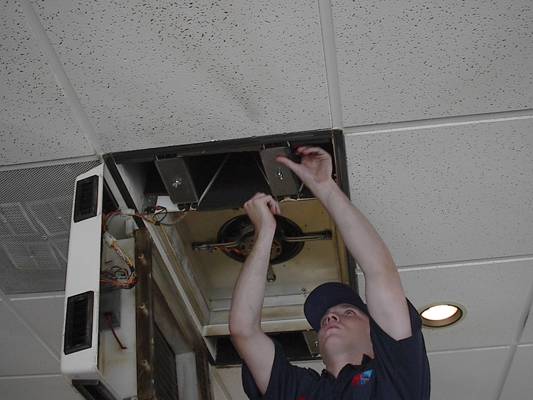

O. Clean the ionizer wires.

P. Clean the plastic tubing the surrounds the ionizer wires.

Q. Close main door, support middle with hand, and turn one screw clockwise until you feel it tighten then repeat on other screw.

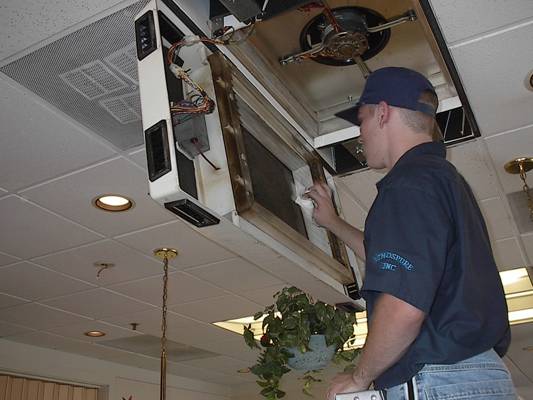

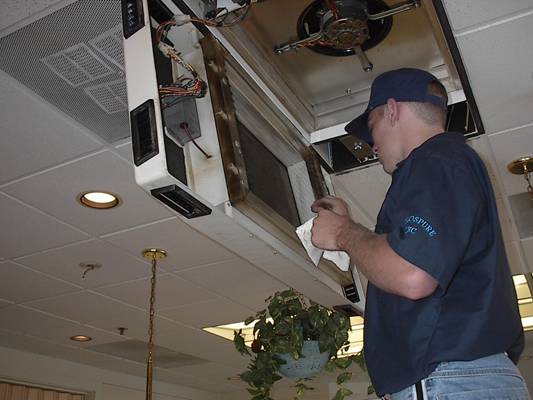

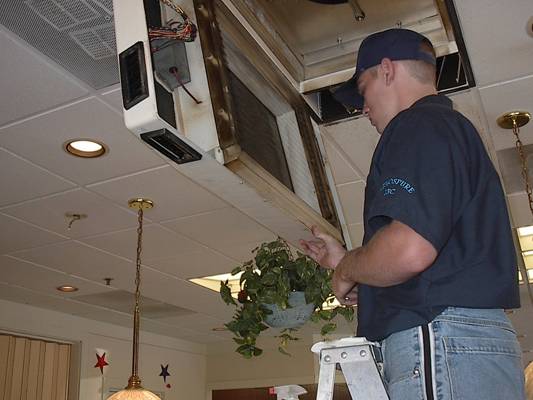

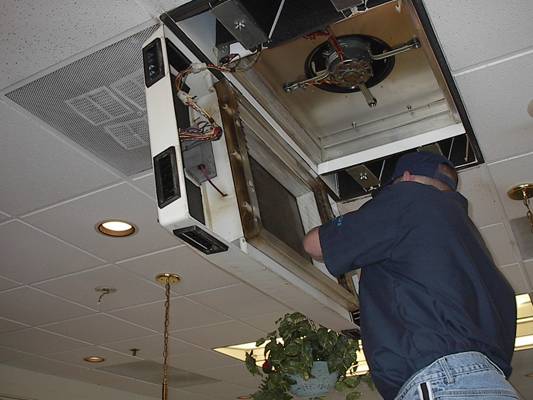

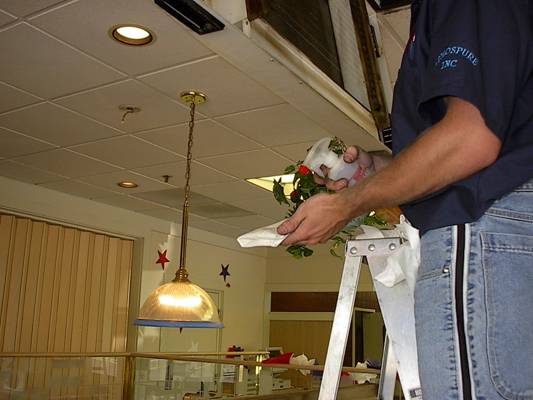

R. Clean all exterior corners on the unit.

S. Make sure both red and green indicator lights are lit.

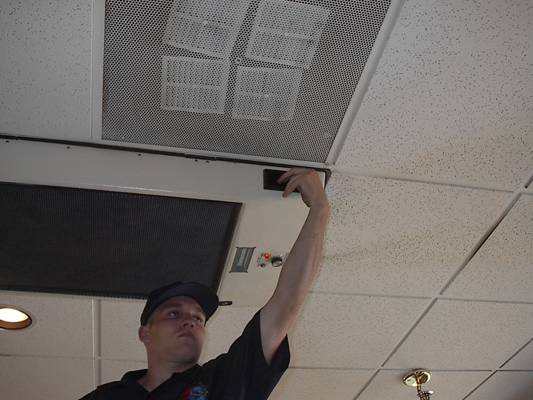

T. Adjust louvers for proper air flow.

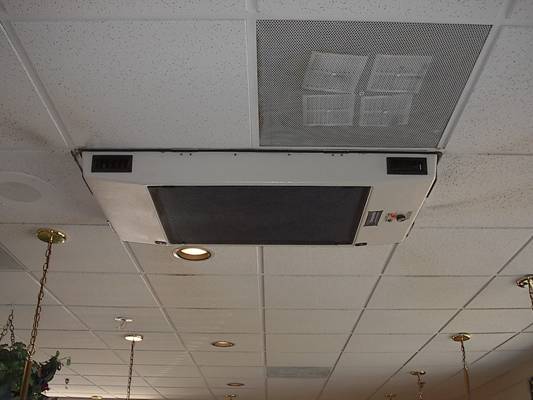

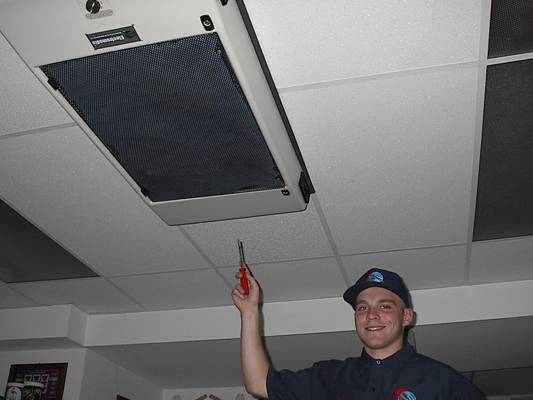

U. All done.
